Pytes V5°α Plus LiFePO4 home storage 100Ah, 48V - 5,12kWh

✅ BMS ✅ Aerosol fire-extinguishing system ✅ Integrated battery switch ✅ Integrated heater ✅ 10-year manufacturer’s warranty


Varianten-ID 103953

Weitere Ausführungen

excl. ${ $store.getters.currentItemVariation.prices.default.vat.value }% MwSt. excl. Shipping
Applicable laws:
Germany: Section 12(3) of the Value Added Tax Act 2023

Germany:
Please note that the zero tax rate applies to the purchase of home storage systems and PV systems (including individual components thereof). following requirements requires:
- The purchaser and plant operator must be the same person.
- The solar installation must be close to residential buildings or located on public and other buildings used for activities that serve the common good.
- The solar system must not exceed 30 kW (peak).
- The system must be installed in Germany.
- The buyer is subject to the German Value Added Tax Act (UStG).

This is how to place an order at zero tax rate:
Germany:
Select the 0% tax box and tick the ‘Confirm’ box if all requirements are met. Add your desired products to your shopping basket as usual and complete your order at the checkout.

ATTENTION: When purchasing the product for installation in motorhomes or boats or other applications not connected to a domestic storage system, the zero tax rate may not be applied!


Further information


Weight , Versand durch Spedition, frei Bordsteinkante

Transportzeit 2-3 Werktage**

Add suitable accessories

Pytes V5°α Plus Lithium Home Energy Storage System 48V / 5.12kWh - Triple Safety Protection

BMS | Aerosol Fire Suppression System | Integrated Battery Circuit Breaker | Integrated Heating | Power Connection: Amphenol SurLok Plus 8.0mm


The Pytes V5α Plus is a modern 48V LiFePO4 energy storage system for residential and commercial photovoltaic installations. Compared with its predecessors, the V5° and V5°α, the new V5α Plus takes its safety architecture to a new level and sets new standards in fire protection and operational safety with its integrated aerosol fire suppression system, integrated DC circuit breaker and pre-charge function. At the same time, the proven high-performance characteristics and robust design of the V5 series are fully retained. With a storage capacity of 5.12kWh, integrated heating, Wi-Fi remote monitoring and expandability up to 491.52kWh, the battery is suitable for both residential energy storage and demanding commercial energy storage systems.

The V5°α Plus features an integrated triple protection system that reliably protects both the battery and the connected electrical system:

  • Enhanced BMS protection
  • Emergency shutdown of the battery circuit breaker
  • Aerosol fire suppression system

Thanks to lithium iron phosphate technology (LiFePO4), the battery offers a high cycle life of over 6,000 charge cycles, an efficiency of over 95% and a 10-year manufacturer's warranty. At the same time, the integrated heating function ensures reliable operation even at low temperatures, while Wi-Fi connectivity enables convenient remote monitoring and firmware updates.

Features:

  • 48V / 5.12kWh
  • Expandable up to 491.52kWh
  • 100Ah capacity
  • 75A charging/discharging current
  • Aerosol fire suppression system
  • Integrated BMS
  • Integrated circuit breakers (DC 125V / 125A | max. short-circuit breaking capacity (Icu) 10kA)
  • Integrated heating mat



  • Efficiency ≥ 95%
  • ≥ 6,000 charge cycles
  • Supports pre-charge function
  • CAN and RS485 communication
  • Wi-Fi remote monitoring (optional)
  • 10-year manufacturer's warranty

Enhanced BMS Protection:

The advanced battery management system of the V5°α Plus goes far beyond the capabilities of conventional standard monitoring. With greater precision in monitoring voltage, temperature and current, it ensures optimal cell balancing and reliably protects against overcharging, deep discharge and uncontrolled heat generation within the cells.

Compared with the V5 battery, the BMS features an additional circuit breaker and a pre-charge function, providing greater safety during operation – ideal for residential applications such as solar energy storage and backup power solutions, as well as industrial applications.

Emergency Shutdown of the Battery Circuit Breaker:

When the integrated circuit breaker of this battery is opened, it simultaneously disconnects the positive and negative terminals internally. As a protective device, it interrupts the circuit in the event of overcurrent or overheating, thereby ensuring system safety. This circuit breaker can also be controlled by the battery management system (BMS). If the battery detects a system fault, a warning light illuminates alongside a red indicator light and an audible signal, and the BMS actively triggers the circuit breaker to trip. The circuit breaker therefore serves not only as a passive protective device but also as an active safety component of the BMS.

Pre-charge Function:

The integrated pre-charge function protects the battery against high inrush currents and voltage spikes during start-up. To achieve this, the initial current is deliberately limited by a pre-charge resistor, allowing internal components to be activated in a controlled manner without being subjected to excessive current loads. Once the pre-charge process is complete, the resistor is automatically bypassed and the battery can operate normally. This protects sensitive components and improves the long-term operational safety of the battery storage system.


Aerosol Fire Suppression System:

The integrated aerosol fire suppression system enhances the battery's already high level of safety by adding an additional layer of protection for exceptional emergency situations. It is located directly inside the battery and automatically activates within seconds if thermal instability is detected at an early stage. This minimises potential effects on the system and further enhances operational safety. As the system is fully integrated into the battery, there are no restrictions regarding room size or installation location. It is equally suitable for residential applications and use in server rooms, telecommunications cabinets or energy storage racks.

Lithium iron phosphate batteries (LiFePO₄) are already regarded as a particularly safe and non-combustible energy storage technology. The integrated aerosol fire suppression system should therefore not be seen as a means of compensating for increased risk, but rather as an additional safety advantage in rare exceptional situations. This underlines the system's high standards of quality and safety.

Both the version with the integrated fire suppression system and the version without it have successfully passed the UL 9540A thermal runaway test. The fire suppression system therefore represents an enhanced safety standard and provides additional protection without implying any weaknesses in the battery.


Applications of the V5°α Plus Home Energy Storage System

The V5°α Plus is primarily used as a solar energy storage system to maximise self-consumption of the solar energy you generate. A grid-connected solar installation that previously fed all its electricity into the public grid can therefore be used for self-consumption. However, standalone off-grid systems can also benefit considerably from the additional storage capacity provided by the 5kWh storage modules.

During the day, when electricity consumption is usually relatively low but the solar installation is generating maximum output, excess energy is stored in the battery modules. In the evening, overnight or during peak demand, the stored energy is used to meet your own electricity requirements. This significantly reduces the amount of electricity purchased from the public grid and prevents valuable solar energy from being exported at low feed-in tariffs. Depending on the design and size of the solar installation and battery storage system, almost 100% energy independence can be achieved. With a grid-connected solar installation, only the surplus electricity is fed into the public grid once the battery storage system is fully charged.

Furthermore, the storage system can also be used as a backup power solution, in both residential and industrial applications, to maintain the operation of essential electrical equipment during power outages, such as access control systems, surveillance systems or medically essential devices.


Advantages of the Pytes V5°α Plus Lithium Energy Storage System

  • Integrated battery management system
  • Fast charging and discharging capability
  • Integrated heating allows the storage system to be installed in areas at risk of frost, such as cellars or garages.
  • Deep discharge capability: while conventional lead-acid batteries (AGM / GEL) should only be discharged to 50%, a depth of discharge (DOD) of 90% is easily achievable with lithium storage systems.
  • High energy density in a compact installation space: to achieve a comparable usable capacity with a GEL / AGM battery, its capacity would need to be almost doubled. A 5.12kWh lithium storage system can provide approximately 4.5kWh at a depth of discharge of 90%. To obtain the same amount of energy from lead-acid batteries (at 50% DOD), a battery capacity of 9kWh would be required.
  • Charge cycles: while the Pytes home energy storage system achieves 6,000 charge cycles at a depth of discharge of 90% (10% remaining capacity), GEL batteries deliver approximately 1,400 cycles at a depth of discharge of 50%, while AGM batteries achieve only around 750 cycles. At a depth of discharge of 90% (for which they are not designed), this would fall to fewer than 200 cycles. Only OPzV or OPzS batteries, as representatives of lead-acid technology (tubular plate batteries), would be conceivable alternatives for energy storage, although their cycle life is approximately 2,500 cycles at 50% DOD and fewer than 1,000 cycles at 90% DOD.

Calculating the total amount of energy that can be drawn from each storage system over its entire service life, based on the number of charge cycles and usable capacity, produces the following results.
Total energy delivered in kWh over the entire service life

  • Pytes 5.12kWh storage system: approx. 28,000kWh
  • OPzS / OPzV 9kWh: 12,500kWh
  • GEL storage system 9kWh: 7,000kWh
  • AGM storage system with 9kWh: 4,000kWh

Dividing the purchase costs of the respective storage systems by these values gives the cost per kWh, allowing a meaningful comparison.


Battery Management System (BMS) in the Pytes V5°α Plus

Each storage module has its own integrated battery management system, ensuring the safe operation of every module at all times. The BMS continuously monitors the condition of the individual cells and protects them against overvoltage, undervoltage and excessive temperatures. These protective mechanisms – integrated into each storage module – prevent premature battery failure and ensure maximum safety.

  • Protection against cell overvoltage
  • Protection against cell undervoltage
  • Charging / discharging shutdown in the event of excessively high or low cell temperatures
  • Charging / discharging shutdown in the event of excessive charging or discharging currents
  • Cell balancing, continuous monitoring of cell voltages with corresponding balancing
  • Reverse polarity protection



BMS icon

Heating icon

What Are the Benefits of the Integrated Heating in the V5°α Plus?

The new V5α Plus storage system is equipped with an integrated heating mat that enables the battery to be charged at temperatures below 0°C. If the internal temperature of the storage system falls below 0°C, the charging current is initially used to warm the cells via the integrated heating. Once the cell temperature rises above 0°C, the heating switches off and the charging current flows directly into the battery. While other storage systems cannot be charged due to excessively low temperatures despite high solar yields, the Pytes V5α Plus fully demonstrates the advantages of its integrated heating system.

The integrated heating ensures reliable operation even at low temperatures and allows flexible installation of the storage system in areas at risk of frost, such as cellars, garages or other unheated rooms.


V5°α Plus - Greater Scalability, Designed for Large Systems

Up to 16 of these storage modules can be connected in parallel to form one group (string), providing a capacity of 81.92kWh. With the optionally available Pytes 1U LV-HUB, which serves as a communication control unit, up to 6 groups can be combined, providing a total capacity of 491.52kWh. The separately available Pytes frame set allows you to stack your batteries easily and securely, achieving maximum storage capacity while saving space. This means your system can grow with your requirements and be perfectly adapted to your needs.

Scalability icon

Smart communication icon

Smart Communication with the V5°α Plus

In addition to its familiar interfaces, the new V5°α Plus storage system features a connection for an optionally available Wi-Fi dongle. This allows the system to connect to an existing network, enabling remote monitoring and remote maintenance of the storage modules via the network. If several storage modules are connected in parallel, one Wi-Fi dongle per group is sufficient.


High Charging and Discharging Currents of the V5°α Plus

Each storage module supports continuous charging and discharging currents of up to 75A, as well as peak currents of up to 120A for 3 minutes and up to 200A for 15 seconds. This allows high-performance electrical loads to be supplied reliably and battery storage systems to be optimally matched to the output of the inverter.

If several storage modules are connected directly in parallel using the supplied jumper cables and the current is drawn diagonally (positive from the first module, negative from the last module), the maximum continuous charging and discharging current of the entire battery bank remains limited to 75A, regardless of the number of modules.

For higher charging and discharging currents, the individual storage modules should be connected to common positive and negative busbars. The inverters or chargers are then connected directly to the busbars. This allows the available charging and discharging currents of the individual batteries to be combined. With two storage modules, continuous currents of up to 150A are possible, while three modules allow up to 225A.

Discharge current icon

Installation icon

Easy Installation of the V5°α Plus

The storage system is easy to install, maintenance-free and can be used as a building block of an energy storage system by connecting multiple modules in parallel. When using several storage modules, they can be connected in parallel using the supplied jumper cables or individually connected to a busbar if higher currents are required. Communication cables for communication between the storage modules are also included in the scope of delivery. The Pytes frame set allows the storage modules to be safely stacked on top of one another.


Service Life / Cost-effectiveness of the V5°α Plus

The integrated high-performance cells in Pytes home energy storage systems deliver more than 6,000 cycles at a depth of discharge of 90%. This protects your investment through many years of reliable operation and is complemented by the 10-year manufacturer's warranty.

Compared with conventional battery technology (lead-acid batteries), lithium storage systems can fully demonstrate their advantages. Of course, all battery storage systems are consumable products, and their service life decreases with each discharge cycle. This cannot be avoided even with LiFePO4 storage systems. However, the significantly higher number of charge cycles and greater energy density of lithium storage systems mean that the cost per kWh over the storage system's lifetime is considerably lower than with conventional lead-acid battery technology.

Safety icon

Extensive Compatibility of the Pytes V5°α Plus Lithium Energy Storage System

Pytes storage modules are characterised by extremely high compatibility: they work seamlessly with many common inverters available on the market. A detailed overview of manufacturers and their compatible inverters can be found in the datasheet in the download section. Below is a small selection.

  • Victron
  • Deye
  • Growatt
  • Voltronic
  • Goodwe
  • Megarevo
  • Studer
  • SMA
  • Solis
  • Hoymiles
  • LuxPower
  • SRNE
  • Afore
  • TBB

Comparison of Three Pytes Storage Modules

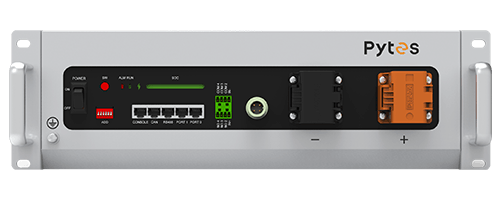

V5

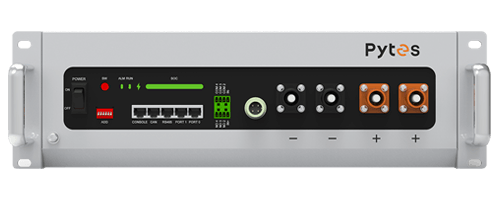

V5α

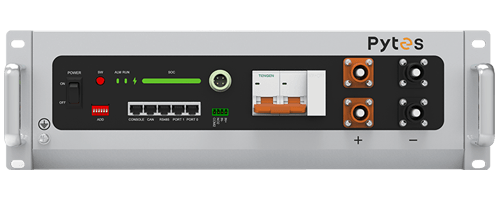

V5 α Plus
Model
V5°α Plus
Connection:
PHOENIX M6 Bolt
Amphenol Surlok Plus 8.0 mm
Amphenol Surlok Plus 8.0 mm
Nominal voltage:
51.2V
51.2V
51.2V
Voltage range:
47.5V ~ 57.6V
47.5V ~ 57.6V
47.5V ~ 57.6V
Nominal capacity:
100Ah
100Ah
100Ah
Nominal energy:
5.12kWh
5.12kWh
5.12kWh
Recommended charging/discharging current:
75A
75A
75A
Maximum continuous charging/discharging current:
100A
100A
75A
Peak charging/discharging current:
101A~120A (3min)
121A~180A (15sec)
101A~120A (3min)
121A~180A (15sec)
101A~120A (3min)
121A~200A (15sec)
Integrated circuit breaker:
No
No
DC 125V / 125A
max. short-circuit breaking capacity (Icu) 10kA
Pre-charge function:
No
No
Supported
Fire protection system:
No
No
Fire suppression device
Communication protocol:
CAN / RS485 / Wi-Fi (with optional device)
CAN / RS485 / Wi-Fi (with optional device)
CAN / RS485 / Wi-Fi (with optional device)
Operating temperature:
Charging: 0°C~45°C
Discharging: -10°C~50°C
Charging: 0°C~45°C
Discharging: -10°C~50°C
Charging: 0°C~45°C
Discharging: -10°C~50°C
Round-trip efficiency:
≥95%
≥95%
≥95%
Dimensions (L × W × H):
442 x 530 x 140mm
442 x 530 x 140mm
484 × 578.2 × 140mm
Weight:
44.00kg
44.00kg
45.34kg

Note: Further technical data for the Pytes storage modules listed in this comparison can be found on the respective product detail pages under the "Technical Data" tab or in the operating manual under the "Download" tab.

Are you unsure which storage system is right for your application, or do you have questions about home energy storage solutions or off-grid power supply in your motorhome? We are here to help!


Scope of Delivery:

  • 1 x Battery storage module
  • 1 x Set of power cables
  • 2 x Spare RJ45 connectors
  • 1 x Earth cable
  • 1 x Communication cable

Further helpful tips can be found in our FAQ

Pytes Storage Battery V5°α Plus

Electrical Characteristics

Nominal voltage:
51.2V
Voltage range:
47.5V ~ 57.6V
Nominal capacity:
100Ah
Nominal energy:
5.12kWh
Recommended charging/discharging current 【1】:
75A
Maximum continuous charging/discharging current 【2】:
75A
Peak charging/discharging current:
101A~120A (3 minutes)
121A~200A (15 seconds)
Integrated circuit breaker:
DC 125V / 125A
max. short-circuit breaking capacity (Icu) 10kA)
Pre-charge function:
Supported
Fire protection system:
Fire suppression device

General Specifications

Power terminals:
Amphenol Surlok Plus 8.0 mm
Battery chemistry:
LFP (Lithium Iron Phosphate)
Communication protocol:
CAN / RS485
Dimensions (L × W × H):
484 × 578.2 × 140mm
Weight:
45.34kg
Operating temperature:
-10°C ~ 50°C
Round-trip efficiency:
≥95%
Cycle life:
≥6000 cycles
Warranty:
10 years

Additional Features

Wi-Fi connectivity (optional):
Remote monitoring and updates
Heating mat:
Temperature rise rate 10°C/h
Operating temperature (heating mat):
-18°C ~ 15°C
Heating mat power:
250W
Scalability:
① One string supports the direct parallel connection of up to 16 V5α Plus units (without a hub) to form a battery pack with a capacity of 81.92kWh;
② Up to 6 of the above battery packs can be managed via a central hub to create a large energy storage system with a total capacity of up to 491.52kWh.
Standards:
UL9540 Ed.2 (2020), UL9540A, UL1973, CEC,
SGIP, CE, IEC62619, UN38.3

【1】【2】The recommended and maximum continuous charging and discharging currents apply to battery cell temperatures between 10°C and 40°C. Outside this temperature range, the current is reduced (derating).
